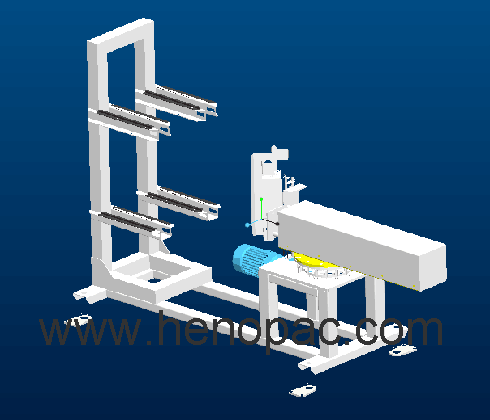

Automatic vertical corner board applicator

    HENOPAC’S vertical edge corner board applicator is the automatic protective edge feeding device. It can work with the rotarty arm wrapping machine ,pallet turntable wrapper ,pallet strapping machine,high speed ring wrapper to improve the automation of production line. Various paper corner magazines can guarantee the flexible application.

Automatic edge board applicator functions：

u it can automatic detect and adjustable the install edge protector position

the center of the cargo is mostly superposition with the center of the wrapper rotary

u it can detect the edge boards margin and achieve automatic warning ,the workers will supplement the new edge boards

u when finish installing ,the edge board will be aligning with the face of the pallet cargo and gapless, it not has the skew phenomenon.

u The edge protector granary need perpendicular install ,the customer need supply the sketch map

u It can achieve unmanned operate during the edge protector place and pick

u The customer need supply the edge protector size .it will regard the subface of the edge protector as the standard when pick and place it

u The pallet can’t mix feeding

u The shape of the pallet cargo need be neat

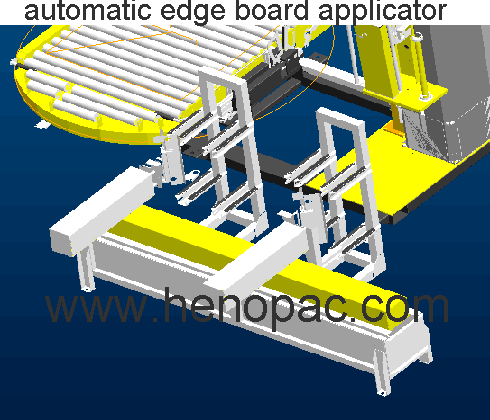

u The automatic corner board applicator can work with pallet turntable wrapper and rotary arm wrapper and horizontal pallet strapping machine

u Pallet size: 1200 x 800mm & 1050 x 1050mm

u One pallet cargo height :2300mm

u The pallet not mix feeding

u Conveyor line height :600mm

u Conveyor line width:1300mm

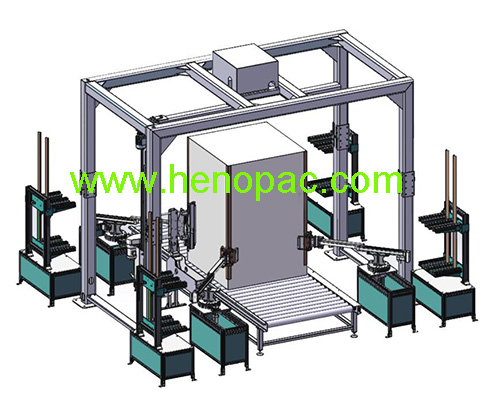

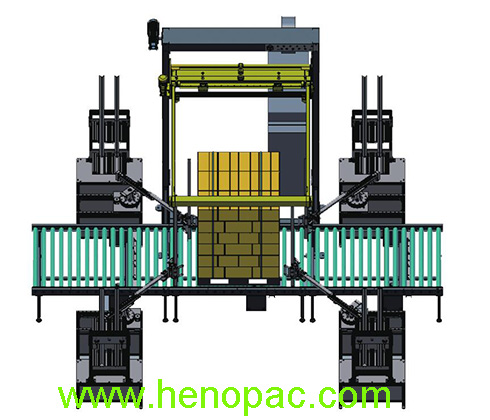

u automatic corner board work with the horizontal pallet strapping machine

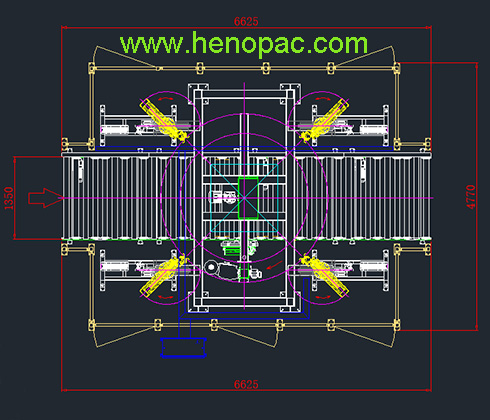

u need four set automatic corner board applicator

u edge protector size : W45 x H45 x L2000 mm

Automatic edge board applicator technical and parameter:

u Dimension: 170mm*1000mm*1100mm

u Edge holder: 600mm*600mm*1570mm(60pcs)

u Edge fixation device: 600mm*500mm*710mm

u Pallet size: 1200 x 800 x 2300mm & 1050 x 1050 x 2300mm (accrdong to customer demands)

u Protective edge: W45 x H45 x L2000 mm (accrdong to customer demands)

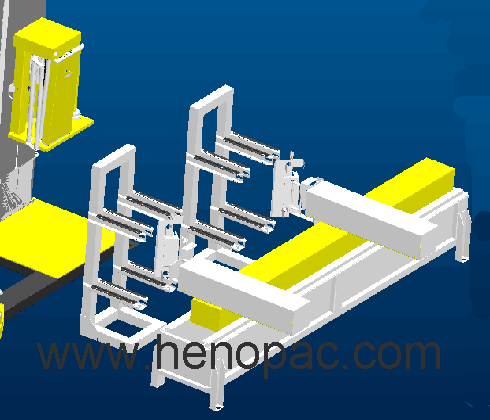

u It include edge protector granary, the place and pick gripper ,the base and

u mobile platform,the pallet center guide cylinder ,control box

Automatic edge board applicator core component:

NO.	Item	From	brand
1	PLC	Germany	Siemens
2	HMI	Germany	Siemens
3	Servo motor	Japan	Mitsubishi
4	Servo motor	Japan	Mitsubishi
5	Cylinder	Taiwan	Artac
7	Electric valve	Taiwan	Artac
8	motors	Taiwan	Liming
9	Gear boxes	Taiwan	Liming
10	photocell	Japan	Omron
11	Vacuum cup	Korea	VMECA
12	Vacuum generator	Korea	VMECA
