Bag folding machine bag folder bag sealer manual

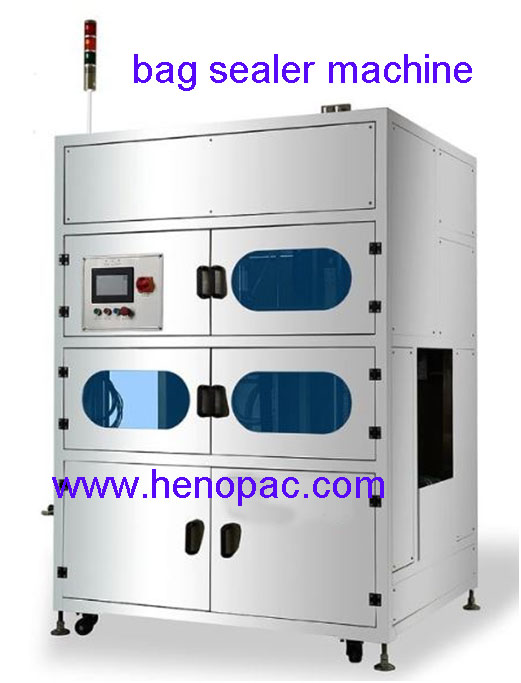

Bag sealer suitable for those sectors that have a high-need of hygiene, such as: frozen products, prepared meals, agricultural products, oil and so on

The box filled with the product enters into the machine and some guides pick up and lift the bag. Then a clamp puts together the sides of the bag and presses them. To complete the process a sealing clamp seals the bag longitudinally. After the process, the box is ready to be closed completely.

This is a smoke-free sealing system to ensure a clean working environment.

Standard technical features (others on demand)

Output (according format): up to 8boxes/min.
Control panel with LCD colour touch screen.
Smoke-free sealing system.
Electric power: based on the country of destination.
Carton specifications

Length: 250 - 450 mm.
Width: 220 -400 mm.
250<H+W/2<550mm

Bag specifications

Material: PE film (LDPE, HDPE). Film thickness: 30-60 microns. M folded barrel film
Coil width: 460 – 840 mm.
Calculation of the dimensions of the necessary bag length

Carton:（L+W）*2+160mm

Versions

Stainless steel 304.
