pallet strapping machine

  • Fully automatic vertical pallet strapping with top presser
  • Fully automatic vertical pallet strapping with top presser
Fully automatic vertical pallet strapping with top presserFully automatic vertical pallet strapping with top presser

Fully automatic vertical pallet strapping with top presser

  • Product description: Fully automatic vertical pallet strapping with top presser
  • INQUIRY
Fully automatic vertical pallet strapping with top presser

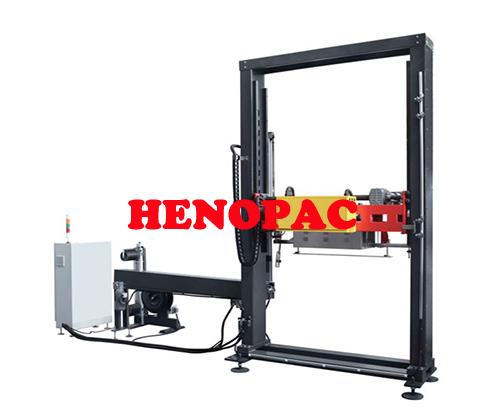

The picture:


The technical parameter:


Power Supply: 380V 50/60Hz 3PH 4.0KW
Air pressure: 0.4~0.6MPa
Tension Range: 20-250kg(adjustable)
Packing Speed: ≤15seconds/cycle
Applicable PP Strap width 9~19(± 0.1)mm,thickness0.55~1.0(± 0.1)mm
Applicable PP Strap Spool: inner dia.406mm,outer dia.600mm,width:190mm
Machine Dimension: L4250×W800×H3300mm
N.W: 800Kg
arch size:W1500×H1800mm
Hot glue position:hot melt weld type,top surface bonding
The hole height of the bottom of the pallet should at least 80mm for the arrow across
Strap belts munber: according the outside signal
Control type:PLC+HMI+Button
PLC control: Siemens/Germany
Touch screen: Siemens/Germany
Main switch button: Siemens APT
Lifting Motor: SEW/Germany
Proximity switch:Fotek/Taiwan
Contactor:Schneider/France
Cylinder:Airtac/Taiwan
