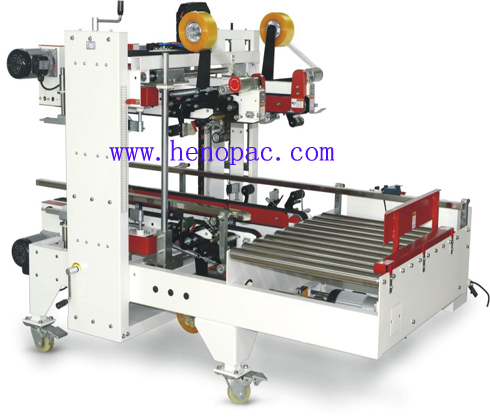

  • FG500L automatic corner and sidc type carton sealer
FG500L automatic corner and sidc type carton sealer

FG500L automatic corner and sidc type carton sealer

  • Product description: FG500L automatic corner and sidc type carton sealer
  • INQUIRY

FG500L automatic corner and sidc type carton sealer


Package size "Min.:   L340*W200*H180mm
Max.:  L700*W500*H500mm"
Belt speed 20m/min
Machine size L1910*W1150*H1500mm
Shipping size L2000*W1240*H1650mm
Power supply 1 phase 220V 50Hz
Power output 0.6KW
Air pressure 6kgf/cm², 100nl/min
Tape size W48/60/72mm
Table height 620-640mm(adjustable)
N.W / G.W 440kg/ 520kg Roller: Stainless steel
With 90° turning and pushing structure; Manually adjust the height and the width for sealing different sizes of cartons; Sealing four corners at the same time; Assort with "一" type carton sealer, form as "H" shaped tape.
