Ergonomic pallet strapping system with electrically driven Chain Lance.

Ergonomic Pallet Strapping Systems for pallets standing on the floor

Strapping without bending, comfortable in an upright position with ideal working height.
The pallet can be strapped comfortable by one person from one side.
This works length- and crosswise the pallet.
Floor clearance requested is only 8 cm (special design possible from 5,0 cm floor clearance on).
Fast, reliable, clean and ergonomic, it used to require two people to bend over and now only need one person to complete!
Roll the henopac in front of the pallet. The Chainlance,pulls the strap through under the pallet, and up again on the rear side
and over the pallet back into the hand of the operator.The chainlance retracts.The straplifter brings the 2nd strap and The sealing head welds the strap securely.



1. Product Parameters



Volume

950*750*1250MM

Weight

105kg

Wear Chain Length

9300MM

Applicable Packaging Material

PP/PET Packing belt

Applicable strap thickness

0.6-1.3MM

Applicable strap width

12-19MM

Applicable package volume

Within width 2000MM, the height 3000MM

Equipment

Charger
Tool set
Tool-Lift

Applicable packaging tape specifications

Core diameter 406MM, core height 200MM

Tray gap height

75MM

Minimum width of the tray gap

200MM

Horizontal feed speed

40 m / min

Vertical feed speed

60 m / min

Full power wear and work times

DC23.6---DC28.8V

Charger charging time

2.5H

battery

33v lithium battery

Battery weight (including housing)

10KG

Voltage capacity

29.6V/32Ah

Charging voltage

33.6V

Maximum charging current

10A

Maximum discharge current

45A

Battery Life

Can be charged and discharged 2000 times

Wearing times

You can wear 400-600 strips per charge.

Product advantages

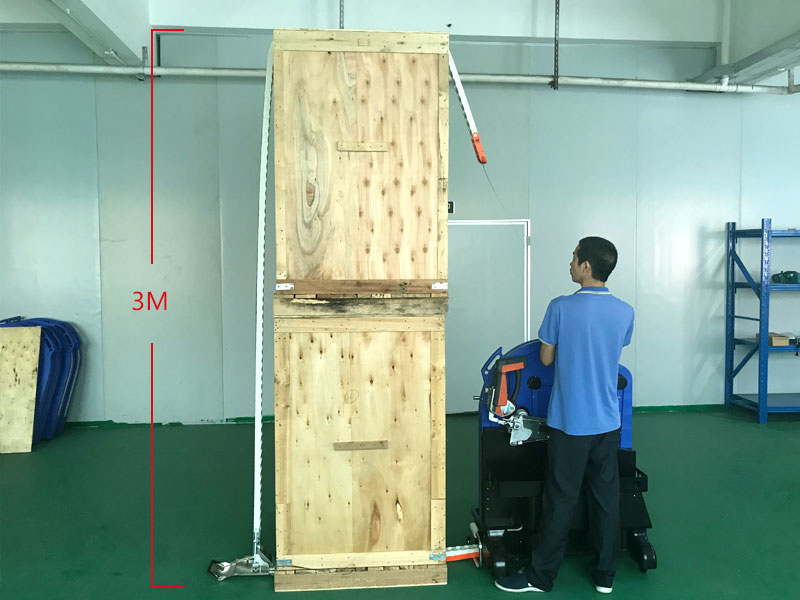

The height of the wearing object can reach 3 meters.

Product Usage

Carton boxes, wooden boxes and other objects are bundled and packed.

After sales service

The wearing parts are guaranteed for one year, and the other machines are guaranteed for two years.

product details

ErgoPack Ergonomic pallet strapping system with electrically driven Chain Lance

ErgoPack Ergonomic pallet strapping system with electrically driven Chain Lance

ErgoPack Ergonomic pallet strapping system with electrically driven Chain Lance



project case:


 ErgoPack Ergonomic pallet strapping system with electrically driven Chain Lance.

ErgoPack Ergonomic Pallet Strapping Systems
for pallets standing on the floor


ErgoPack Ergonomic pallet strapping system with electrically driven ChainLance
